Product description
|
Price (unit) |
To order. Transponder sold complete or only its aluminium empty enclosure.

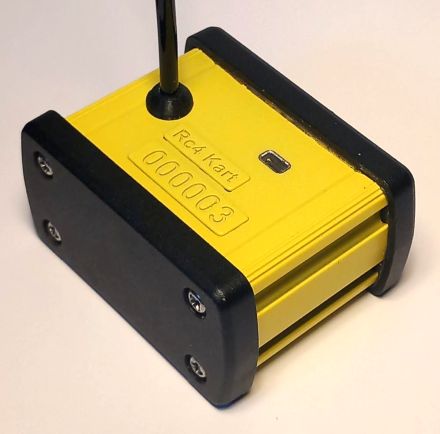

Transponder with high-end full aluminium enclosure
It is particularly intended for tracks with hard conditions (big humidity, mechanical shocks, …)
The difference of this transponder with the plastic version is the use of a full aluminium enclosure :
- Enclosure very robust realized in milled aluminium of thickness 2.5mm.
- Enclosure IP66 totally waterproof.
- Electronic and functional characteristics same as the plastic version.
Specifications
:
|
Specifications |
Transponder
RC4 Karting |
|
Number of codes available |
65000 |
|
Response time |
< 2ms |
|
Critical detection height
(simple magnet bar) |
11cm
= 4.3" |
| Critical detection height
(magnet bar doubled) |
15cm
= 5.9" |
|
Standby current consumption |
3µA |
|
Operating current consumption |
33mA |
| Battery autonomy, standby mode |
3 years |
|
Battery autonomy, number of
laps |
200
000 laps |
| Battery type (replaceable) | 1 battery CR2450 |
|
Temperature range |
-10°C / + 55°C |
| Dimensions ( L x W x H ) | 69
x 49 x 35 mm |
| Weight (battery included) | 135g |
